• 3D form pressing machine

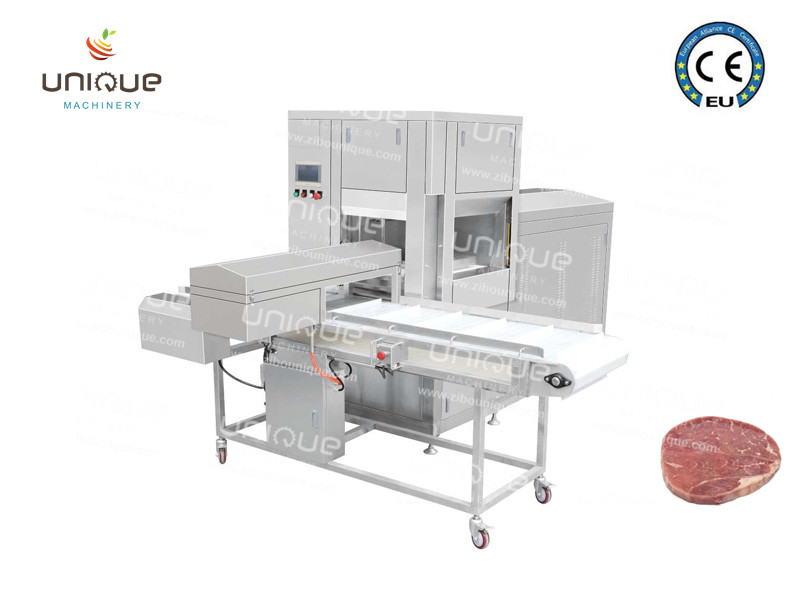

3D form pressing machine

Model:CXJ3D
Application:
Description:3D meat from pressing machine realize gentle form pressing a variety of meat products.

Tel : 0086-18265879944

E-mail:info@zibounique.com
Send us your request and we will get in touch with you.

Introduction

The fully automatic 3D meat form pressing machine is specially designed for the forming and pressing of cold fresh meat, conditioning meat. The irregular frozen meat is pressed through the three directions of the  mold. Choose different parameter according to different meat products, so that meat fiber is uniform and meat surface is neat. Zero losses when slicing meat.

1. The machine as a whole is made of SUS304 stainless steel material, which meets the requirements of sanitary standards. The equipment can be rinsed directly with water.
2. The equipment adopts a safe and reliable hydraulic transmission system, the pressure can be adjusted, and the system automatically controls the rise of hydraulic oil temperature.
3. According to different products, you can quickly replace the molds, which can produce products of different specifications and different meat quality.
4. The equipment automatically adjusts the pressure of liquid pressure plastic surgery. The meat produced is firm and does not destroy meat fiber.
5. The equipment is fully automatic program control, the program is adjustable, and the production is convenient.

Parameter

Form pressing machine dimension: 2000*1060*1930 mm
Conveyor dimension: 2500*1000*900 mm
Power:7.5kw / 380V / 50Hz / 3 phase
Control voltage: 24V
Power source: hydraulic+compressed air
Plastic dynamics: hydraulic pressure
Mechanical power: compressing air
Maximum mold specification: 550*250*120
Device plate thickness: 8-25mm
Maximum pressure at the hydraulic station: 25MPa
Work pressure: 5-14MPa adjustable
Compressed air pressure: 0.8MPa
Compressed air consumption: 30m³/h
Work efficiency: 5-10 pieces/minute
