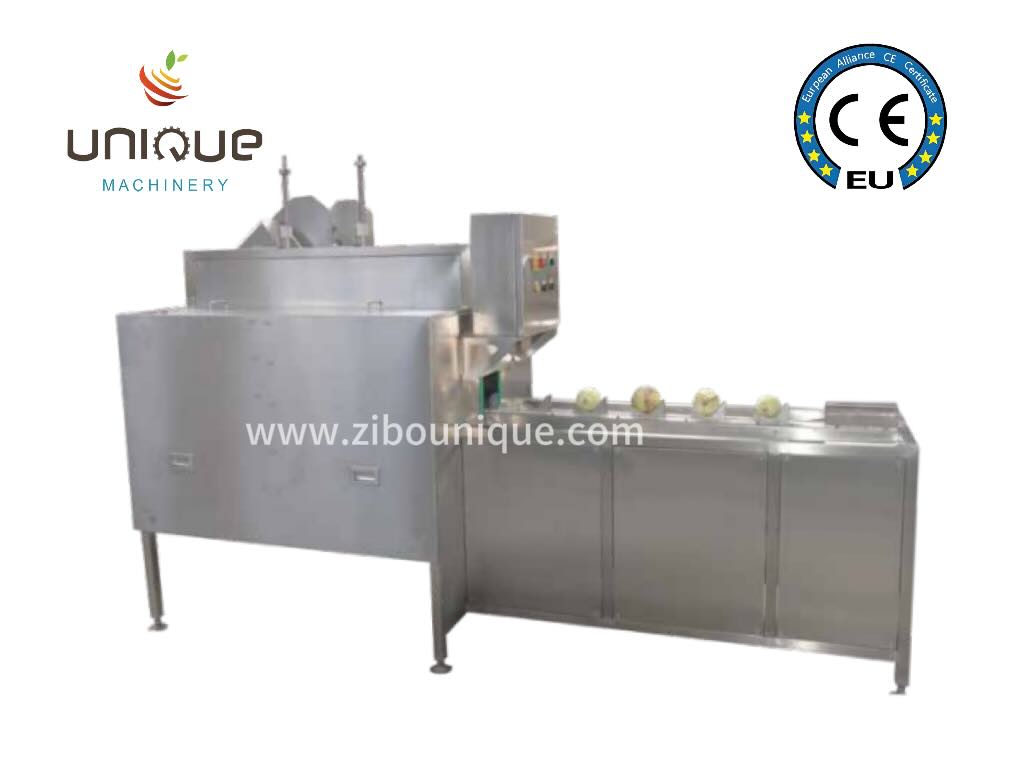

Equipment structure: mainly composed of five parts: frame, cutter combination, feeding mechanism, pressing mechanism and control box.
Equipment features: simple operation and easy use; high degree of automation and continuous operation.
Working principle: After the equipment is started, the onion is put into the feed port, and the onion is automatically driven forward by the feeding mechanism, and the head and tail are cut through the pressing mechanism and the cutter combination.
Equipment configuration:
1. The whole equipment is made of SUS304 material.
2. The reducer is made of domestic first-line brand.
3. The blade is made of 420J2 material, which is sharp and wear-resistant.
4. It is started by 24V low-voltage power supply, which is safe and reliable. The low-voltage electrical components are made of Taiwan Shihlin brand, the low-voltage power supply is made of Taiwan Mingwei brand, and the button switch is made of Japan IDEC brand.

Dimension: 3045*1180*1940(mm)
Power: Feeding mechanism: 0.75KW, Pressing mechanism 0.12KW, Cutter combination: 0.18KW
Voltage: 380V 50HZ 3 phase
Capacity: About 1000-1500KG/h
Onion size requirements: diameter 6-15 cm, length within 22 cm
