• Vegetable bag packing machine

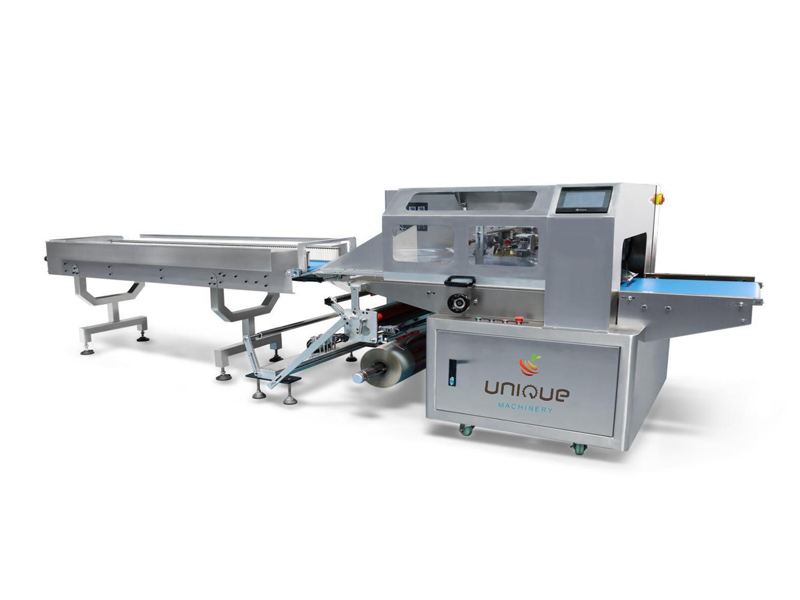

Vegetable bag packing machine

Model:UNI600X
Application:
Description:Vegetable packing machine is a kind of pillow packing machine which can pack fruit and vegetables into a plastic bag to prolong shelf time.

Tel : 0086-18265879944

E-mail:info@zibounique.com
Send us your request and we will get in touch with you.

Introduction

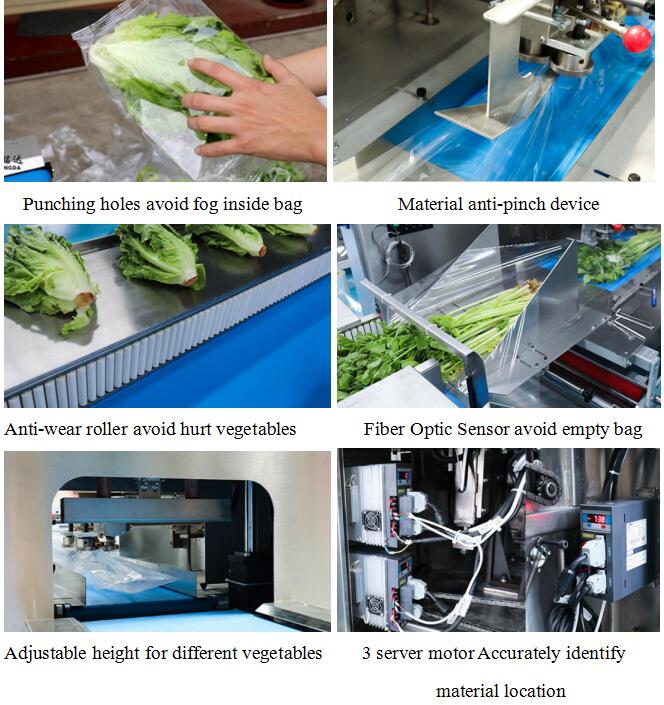

1. The optical fiber sensor can automatically identify the length of the material, and the length of the material does not need to be fixed (variable length).
2. It can automatically detect the presence or absence of materials, stop when there is no material, and the anti-air bag anti-cutting material.
3. The private server motor controls the cutter, which has higher controllability, more precision, simple operation, convenient maintenance and affordable price.
4. Compact structure, stable performance, quiet and stable operation.
5. Adopt touch-type man-machine interface, convenient parameter setting and fault self-diagnosis function, fault display is clear at a glance.
6. High-sensitivity photoelectric eye color mark tracking makes the sealing and cutting position more accurate.
7. Independent PID control of temperature, better suitable for coating of various materials.
8. Positioned stop function, no sticking to the knife, no waste of film.
9. The rotating system is simple, the work is more reliable, and the maintenance is more convenient.







Parameter

Dimension: 4600*1050*1500 mm

Power: 220V,50/60HZ,3.6KVA

Film width < 600mm

Bag Length: Adjustable

Bag width 100-280mm

Product high ≦145mm

Film roll diameter : Maximum 320mm

Packing speed 20-40bag/min

Gross weight:800kg
