• Citrus juice extractor machine

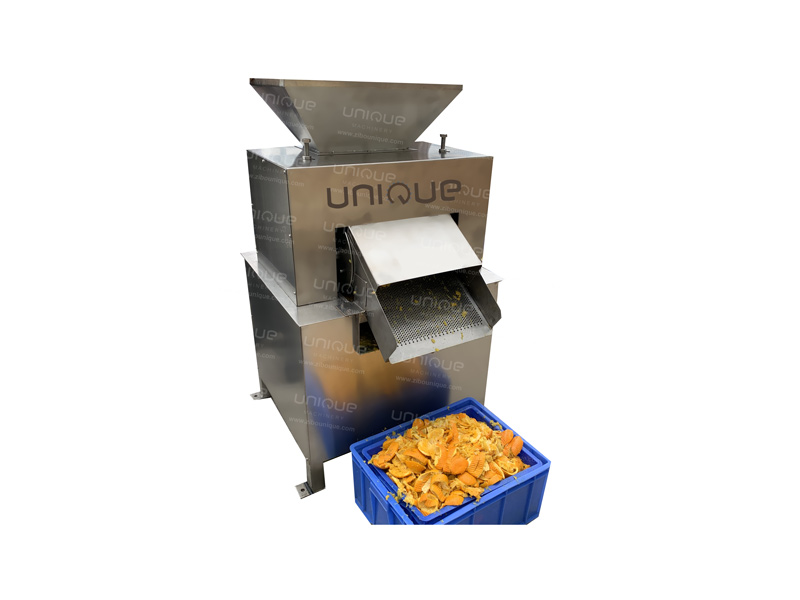

Citrus juice extractor machine

Model:
Application:
Description:Citrus juice extractor machine is suitable for extract juice from lemon, orange and related citrus fruit without damage to seeds.

Tel : 0086-18265879944

E-mail:info@zibounique.com
Send us your request and we will get in touch with you.

Introduction

1.It is suitable for squeezing passion fruit, kumquat, lemon, green lemon, grapefruit, orange, citrus fruits. The fruit does not need to be peeled or graded, and the juice is directly squeezed.

2.Structural features and working principle: This machine is mainly composed of three stainless steel counter-pressure rollers, two knife rollers, one feed roller, feed hopper, juice hopper, skin hopper, frame, transmission and other parts. When working, turn on the power and pour the material into the hopper. The material first passes through the middle of the two knife rollers, and is pressed into the knife roller through a material shifting roller to cut. After cutting, it is further squeezed by three pressure rollers. The skin hopper is discharged, and the juice is discharged from the juice hopper, so as to achieve the purpose of pressing and extracting juice.
3.The equipment is made of 304 stainless steel except for the transmission parts.

Parameter

Dimension: 1200*1060*1310mm

Power: 2.2 kw

Capacity: 2-3 T/H

Applicable material size: 20-110mm
