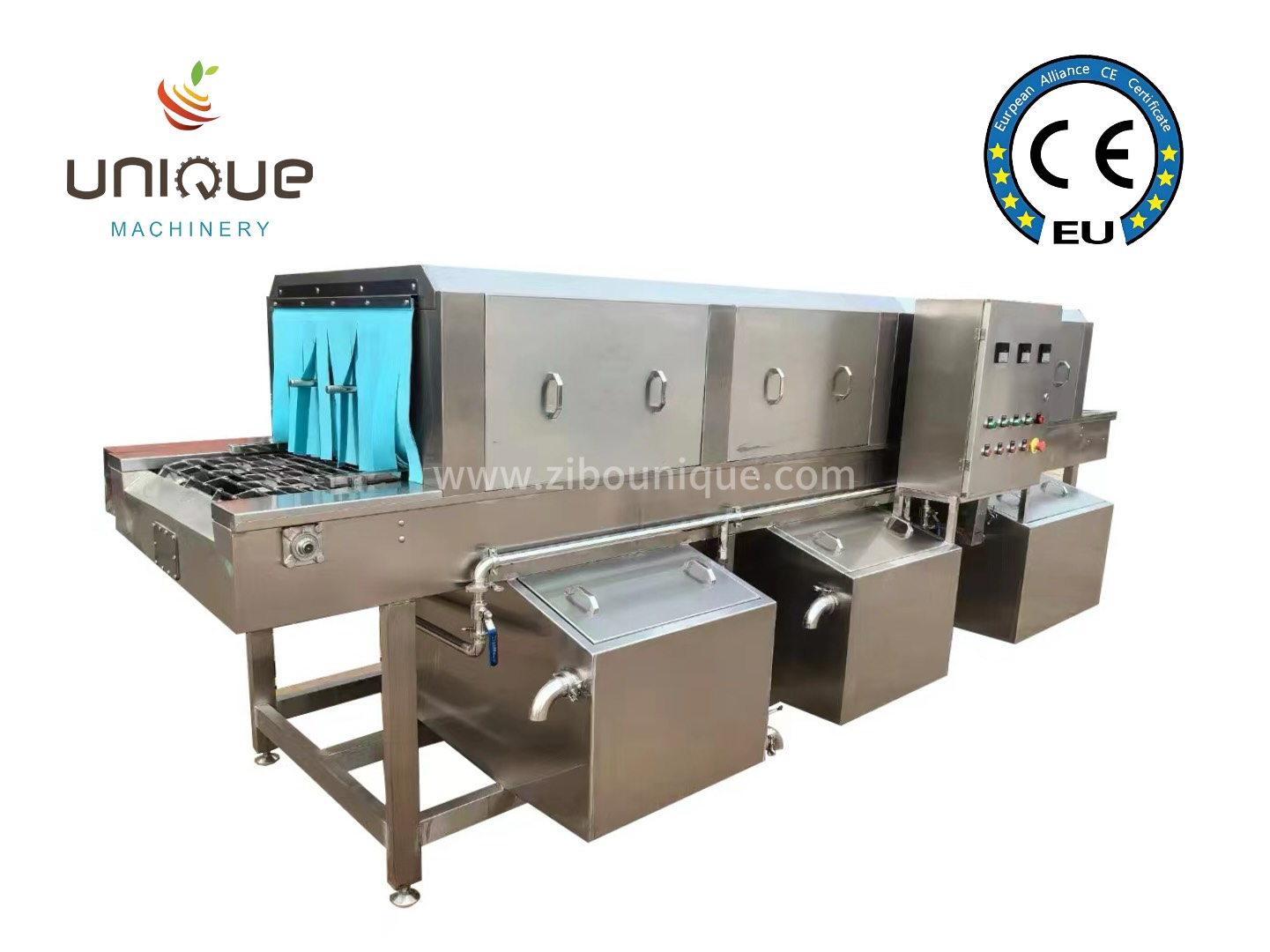

Crate washer

Model:XXJ4800
Application:
Description:Crate washer use high pressure water to clean plastic crate or pallet.

Tel : 0086-18265879944

E-mail:info@zibounique.com
Send us your request and we will get in touch with you.

Introduction

Cleaning steps: Adopt 4 step washing.
The 1st step is high flow cleaning, simulating the traditional soaking method in the cleaning process. The adhered substances on the surface of the turnover box are foamed and softened, which is more conducive to subsequent cleaning.
The 2nd step is high-pressure washing, which flushes the attachments on the surface of the turnover basket away through high-pressure means, achieving the purpose of cleaning stains.
The 3rd step is clean water rinsing, using relatively clean circulating water to rinse the surface of the turnover basket. As the water in the first two stages of the water tank will become dirty after recycling, the remaining cleaning solution in the first two stages will be rinsed off with relatively clean water.
The 4th is rinsing, which is thoroughly rinsed again with clean water to ensure that the surface of the box is clean and free of residue.

Product advantages:
1. Fast cleaning speed: According to customer requirements, it can clean 300-500 pieces per hour.
2. Reliable and hygienic: The entire equipment is made of SUS304 stainless steel material, which is not available in pharmaceutical grade
Seam welding technology, smooth inner and outer welding joints, without sanitary dead corners.
3. Save labor: Only 2 people are needed to complete the traditional cleaning volume of 10-20 people;
4. Energy saving: During the operation of the equipment, a three-stage water tank is used to replace the water, and the cleaning water is recycled through multi-stage filtration.
5. Convenient cleaning: can be directly rinsed with water.

Parameter

Voltage: 380v 50Hz / 3 phase
Power: 61 kW
Capacity: 300-500 crates/h
Machine dimension:4800x1650x1600 mm
The first water tank is a 5.5kw stainless steel horizontal centrifugal water pump.
The second water tank is a 7.5kw stainless steel vertical multi-stage water pump.
The third water tank is a 2.2kw stainless steel horizontal centrifugal water pump.
Drive reducer motor 0.75kw.
The first water tank has an electric heating power of 45kw. With water temperature controlling system.
Washable box size: Width: 300-500mm Height: 100-320mm
